Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

Name: SingleHead Online ThreeStage Selective Wave Soldering YS400 30KW
Brand: YUSH
Price: 15000 USD

Brand Name : YUSH

Model Number : YS-400

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : jiangsu

MOQ : 1set

Price : USD15000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100Sets/Month

Delivery Time : 5-7work days

Packaging Details : plywooden case

Overall Dimensions : 2850L*1650W*1850H (mm)

Machine frame : Steel structure+baking paint

Operating height : 900±30mm

machine appearance : closed - type

Weight : Approx.1500KG

Power supply : 380V Three-phase five-wire system, 380V

Total power : 30KW

Operating mode : PCB board guide transportation, XYZ axis movement of solder pot, XYZ axis movement of flux spray valve.

Contact Now

High Quality Single-Head Online Three-Stage Selective Wave Soldering MSI-400TO 30KW

Overview of Scheme Advantages

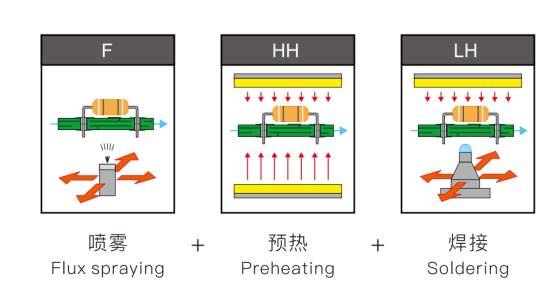

An integrated all-in-one functional machine with three PCB boards or fixtures working simultaneously in spraying, preheating, and welding sections, enhancing overall machine productivity.
Individual spray flux table & soldering table.
High soldering quality.
SMEMA interfaces on both sides of the machine enable online transportation, supporting flexible line configuration for customers.
Equipped with wave height detection (calibration)
Nitrogen Flow Control: Adjusting nitrogen flow rate with a nitrogen flowmeter
Equipped with a barcode scanner for 2D barcode reading.
Fiducial mark recognition:Configuration of Make Points for Error-proofing and Correction
Equipped with solder level detection and automatic solder feeding system
Online Programming Software: Real-time PCB Image Scanning via Positioning Camera
Offline programming capability: Allows parameter programming offline after image import
Side camera and monitor for real-time soldering display:Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc.
Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,N2 temperature etc, best trace-ability and easy to get repeat soldering quality.

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

Standard machine include

Serial	Item	content	Quantity
1	Controlling system	PC & monitor	1set
		Live on monitor camera
		dual motion control
2	Motion table(fluxing)	Fully cast iron xy motion table	1set
		2 axis equipped with ball screw & linear guild rail
		2 axis equipped with servo motor & driver
3	Fluxing system	Imported jet fluxing valve(dual nozzle)	1set
		flux tank
		flux pneumatic system
4	preheating system	slight heat on the wind and preheating with infrared spotlights	1set
5	Motion table( soldering )	Fully cast iron xyz motion table	1set
		3 axis equipped with ball screw & linear guild rail
		3 axis equipped with servo motor & driver
6	Soldering pot	13KG electromagnetic pump tin furnace	1set
		solder temperature over heat alarm system
		solder temperature controlling system
		2 inline heating system
		(inner diameter 8mm, 3mm, 4mm, 5mm,6mm )Standard equipped solder nozzle
7	Conveyor system	stepper control for front & rear conveyor	1set
		pin chain for conveyor (soldering section)
		PCB Plate blocking device spray section, preheating section
		stepper control for front & rear conveyor
		roller for conveyor (soldering section)
		PCB stopper system
		PCB side clamping system
8	Machine chassis	machine frame/cover & painting	1set

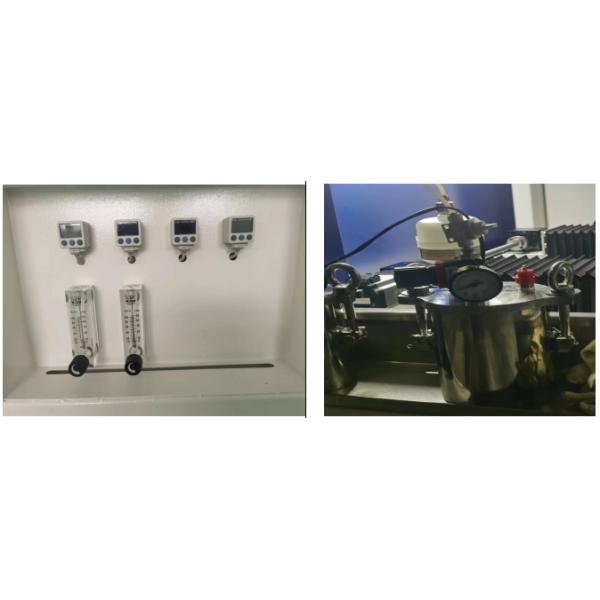

Fluxing system

Standard equipped with imported jet valve to get precious fluxing result with small flux dot, please note flux solid content should be less than 10%.

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW

by PP plastic pressure tank, make sure pressure stable without influenced of amount of flux.

Single-Head Online Three-Stage Selective Wave Soldering YS-400 30KW
