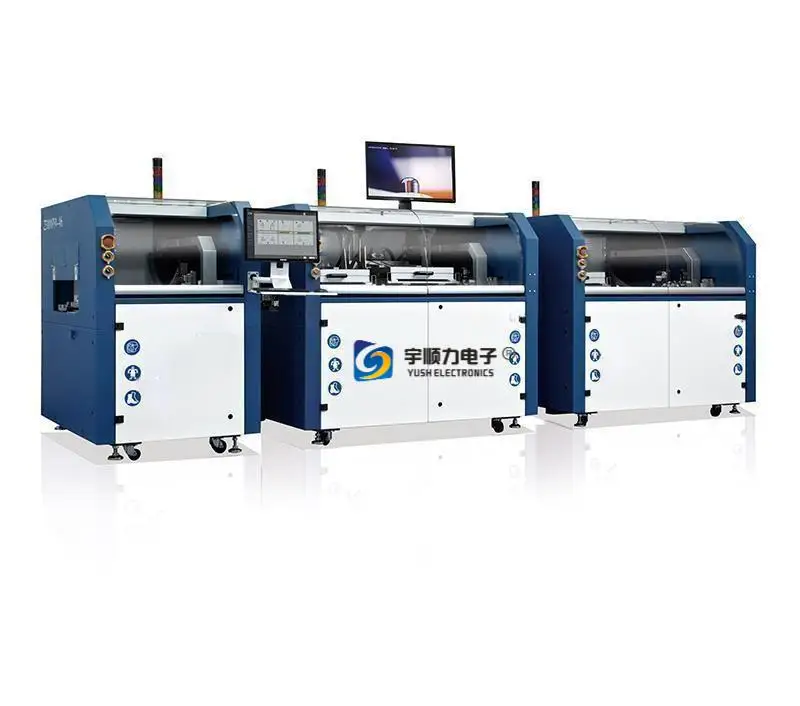

SMT M Selective Wave Soldering Machine With Single Pot Dual Pots Individual Control Soldering System Provided 220V

Introduction:
The spray head which is imported from Germany offers an absolutely precise and
well defined flux deposition on even the smallest areas. The flux is targeted to be
applied only to the solder joint,whereby the wettable area can be as small as 3
mm.with the effect that ionic contamination is minimized and flux consumption is
duced.

Features:
Saving 90%flux compared to traditional mode.
The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.
Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.

Introduction:
The current selective soldering processes, in particular those for lead-free soldering,
multi-layer boards or high mass components, call for increased preheat capacities.
Short wave IR heater on the bottom and hot air convective preheating on the top, to
ensure preheating evenly.

Features:
1, Segmented & modular layout, preheating more flexibly.
2, Lower short wave IR preheating on the bottom,increasing the efficiency.
3, Hot air convection preheating on the top, preheating more evenly (optional).

Advantages Of Using Induction Pump:
1,3-axis servo drives, high control precision.
2,Min.nozzle diameter is 3mm,point or track soldering available according to different through hole components.
3,Max.solder wave height is 5mm and controllable,soldering climb rate increased largely.
4,Dual-pot optional, highest flexible.
5,Nitrogen protection, only minute amounts of dross.
6,Pot temperature are continuously monitored.
7,Wave height monitoring available.
8,Solder level monitoring available.
9,No mechanical movement and no wearing.
